|Tube Chip Color:||Full Color||Pixels:||20mm|
|Module Size:||320mmX160mm||Density of pixel:||2500 Dots/m2|
2R1G1B P20 Flexible Led Curtain Screen,
320mmX160mm P20 Flexible Led Curtain Screen,
2R1G1B p20 led display

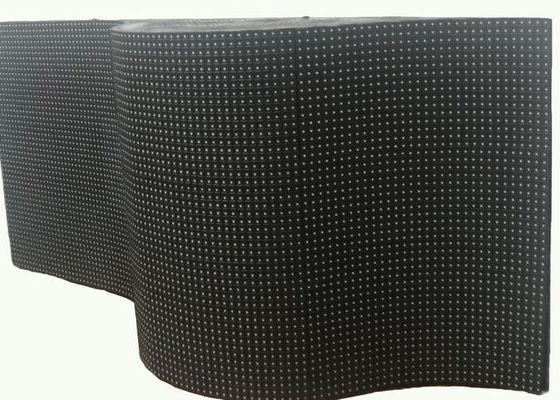

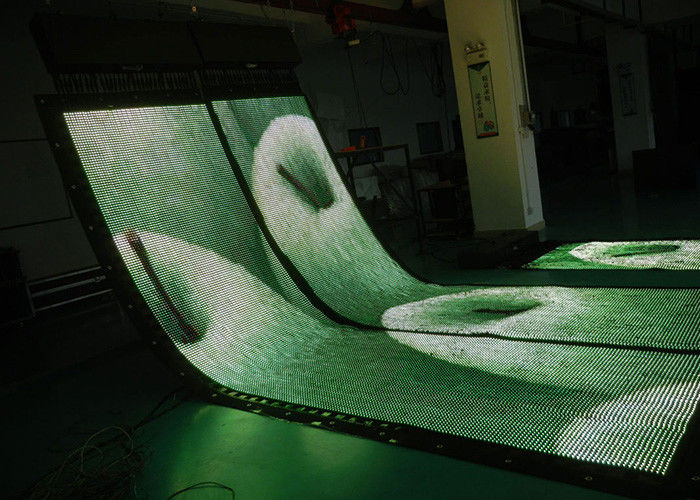

2R1G1B P20 Flexible Led Curtain Screen 320mmX160mm Module Size
1. Full color by filling the whole of imported silica gel,which makes our products in water,antifreeze,superior high-temperature side
2. After a dustproof and waterproof tested to reach its target IP65
3. All modules are cross color enhancing, and the edge compression is strong, not deformation, the flatness of display cabinet will be better.
4. The box with a sliding iron top, bottom chute, and optional locking device to fine-tune the gap and ensure seamless between the boxes. Please do not squeeze the entire screen which ensure good surface smoothness
5. Measured by the Shenzhen Institute of Quality Inspection Bureau U.S. core companies of the outdoor full color display for temperature impact test, the results showed that: outdoor full color display can use the power normally under the temperature at -25 °C to +75 °C
6. Widely used in advertising, sports, industrial enterprises, transportation, stations, terminals, airports, construction, education system and other public places
|Chip Size||Red 9 mil, Green 12mil, Blue 12mil|
|Light type||DIP 546|
|Module Resolution||16 X 8 (dots)|
|Density of pixel||2500 dots/m2|
|Best viewing distance||≥20m|
|Maximum power consumption||800w/m2|
|Gray scale||14bits per color|
|Driving method||Constant current Static scanning|
|MTBF||More than 8000hours|
· Distinctive easy-installation and disassembly design to reach rental application needs.
· Aluminum material design to provide lightness perfectly combines with firmness.
· Unique front side LED strips maintenance design offers huge convenience. Hanging structure optional.
· Advanced waterproof technology to reach IP65.
· Advanced surface mounting process.
· Easy configuration and maintenance.
· Extreme viewing angles and good self heat-releasing ability
