Full Color 640*1920mm 3840HZ LED Poster Display For Hotel Restaurant

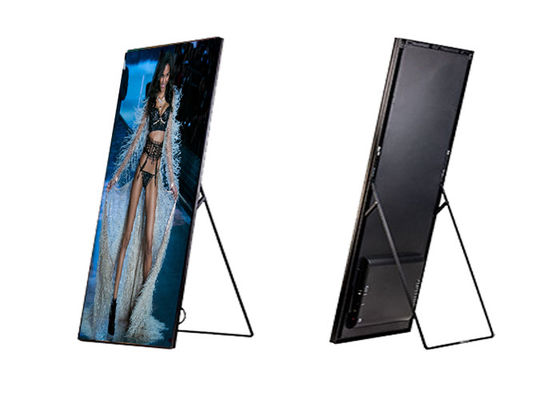

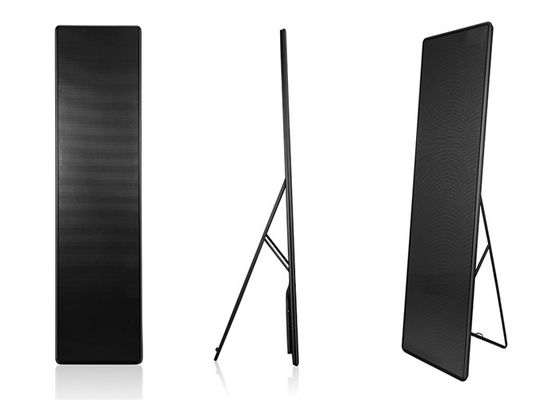

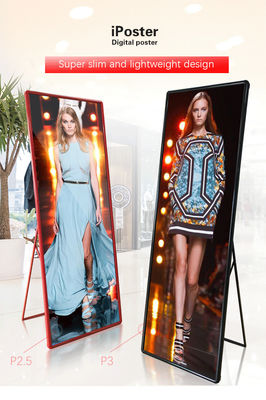

Poster LED display is ultra-thin and super-light, it can be fixed by magnet and screws two way. If fixed by magnets, you can maintain led display from both front side and rear side. IPoster led display with bracket that can stand on floor directly, you can also hang it on wall if necessary. It is perfect alternatives for tranditional Poster.
Feature
1) Support all kinds of videos, graphics, pictures, files, text, and etc.
2) Engergy-saving. Using high brightness LEDs with low power consumption.
3) Reliability-- Support 24/7 working without any faulty.
4) Intelligent control-- Support synchronization, asynchronization, wireless control(3G, WIFI), or Cluster control.
5) Modular design for easy installation and maintenance
6) Super bright and can be adjustable:indoor 1500-2000nits outdoor 5000-8000nits
7) Wide viewing angle and longer viewing distance for more audiences.
Product specification
| Item |
Technical parameter |
| Pixel Pitch |
2mm |
| Module Resolution |
160*80 dots |
| Module Size |
320*160mm |
| Pixel configuration |
1R1G1B |
| Module Chip |
Kinglight/Nationstar |
| Driving Method |
1/32Scan |
| Physical Density |
250,000 dots/m2 |
| LED Encapsulation |
SMD1515 |
| Module Port |
BUH75 |
| Module Consumption |
≤16W |
| Brightness |
1200 cd/m2 |
| Cabinet Dimension |
640*1920mm |
| Cabinet External Dimensions |
700*1980*100mm |
| Cabinet Resolution |
320*960 dots |
| Quantities of module |
2*12 |
| Cabinet Flatness |
Tolerance of inter pixel ≤0.3mm |
| Cabinet Material |
Aluminume,Iron |
| Cabinet Weight |
38KG |
| Option Distance |
2--80M |
| Viewing Angle |
Horizontal 140° Vertical 120° |
| Max. Power consumption |
675W/sqm |
| Driving Device |
ICN2153IC |
| Frame Frequency |
60Hz |
| Screen Flatness |
Tolerance of cabinets ≤0.6mm |
| Refresh Frequency |
1920Hz/3840Hz |
| Control Mode |
Wifi asynchronization |
| Working Environment |
Temperature -10℃~60℃
Humidity 10%~70%
|
| Display Working Voltage |
AC110V/220V , 50Hz/60Hz |
| Colour temperature |
8500K-11500K |
| Communication distance |
Network cable: 100m, Multi-model: 500m,
Single-model fiber: 20km
|
| Gray scale |
≥16.7M |
| MTBF |
>10,000 hours |
| Support video source |
HDMI, CVBS, SDI , DVI etc |
Detailed:
How LED Poster Works - Topology Diagram
Dimension
Packaging
Key Features
Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
