Digital 6000nits P12 Led Display , IP65 IP54 Led Stadium Advertising Boards

I'm Online Chat Now

Digital 6000nits P12 Led Display , IP65 IP54 Led Stadium Advertising Boards

Digital 6000nits P12 Led Display , IP65 IP54 Led Stadium Advertising Boards
Digital 6000nits P12 Led Display , IP65 IP54 Led Stadium Advertising Boards Digital 6000nits P12 Led Display , IP65 IP54 Led Stadium Advertising Boards Digital 6000nits P12 Led Display , IP65 IP54 Led Stadium Advertising Boards Digital 6000nits P12 Led Display , IP65 IP54 Led Stadium Advertising Boards

Large Image :  Digital 6000nits P12 Led Display , IP65 IP54 Led Stadium Advertising Boards

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE-EMC, CE-LVD, RoHS, ETL, FCC
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 10sqm
Price: negotiable
Packaging Details: Flight Case
Delivery Time: within 1month
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 10,000sqm/month

Digital 6000nits P12 Led Display , IP65 IP54 Led Stadium Advertising Boards

Description
Pixel: 12mm Color: Full Color
LEDs: SMD IP Class: IP65
Cabinet: Aluminium Safety: FIFA Standard
High Light:

6000nits P12 Led Display

,

IP65 IP54 Led Stadium Advertising Boards

,

6000nits Led Stadium Advertising Boards

Digital 6000nits P12 Led Display , IP65 IP54 Led Stadium Advertising Boards



Quick Details:

1, Pixel Pitch: 12mm.

2, RGB Full colors: 281trillions.

3, SMD leds, viewing angle: 160°/ 160°.

4, Aluminium cabinet, stadium, rental dual usage.

5, Dustproof and waterproof: IP65.

6, Standard cabinet size: 960×960x150mm, customized cabinet: 1280x960mm or 1920x960mm.



Description:

 Stadium Perimeter LED Displays include outdoor led screen: 8mm, 10mm, 12mm and indoor led perimeter: 6mm and 10mm.



Features and Advantages:

1. High Brightness

More than 7000nits and it can be sawn from long distance.



2. Soft Mask

Soft mask design delivers good protection to the players and also decreases damage to LEDs.



3. Adjustable Support and Quick Rigging System

Flexible support design makes LED panel lean by multi angles to cater audience’s needs and quick rigging system design makes the installation and dismantle easier and faster.



4. Cost Effective LED Display

Energy saving design, help you saving cost.

5. Waterproof and 2 Year Warranty

Water Proof IP65 and 2 year warranty. LED display can work in all-weather condition very well.



Parameters:

Parameter Unit Value
Brightness nits 6000
Color temperature deg.k 3200 ~ 9300
Viewing angle - Horizontal deg. 160(+80/-80)
Viewing angle - Vertical deg. 160(+80/-80)
Cabinet weight kg 50
Cabinet width mm 960
Cabinet height mm 960
Cabinet depth mm 150
Cabinet area sq. m. 0.92
Cabinet material   Cold Steel
Aspect ratio   4:3
Ingress protection (Front/Rear) IP IP65/IP54
Operating temperature range deg. C - 20 to 50
Operating humidity range HR 10% to 90%
Pixel type and configuration R/G/B SMD 3in1
Pixel pitch mm 12
Pixel matrix per cabinet   80x80
Pixels per cabinet   6400
Lines per meter   83
Pixels per sq. meter   6944
LEDs per sq. meter   6944
Recommended minimum viewing distance m 12
Colours   281trillion
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Digital processing bit 16
Frame rate Hertz 60
Display refresh rate Hertz 1920
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Input power (max/avg) Watts per sq.m 960/330
MTBF Hours ≥10000
Lifetime (50%Brightness) Hours ≥100000
Module brightness uniformity   <5%
Blind spot rate   <0.0001
Earth leakage current mA <2
Red wavelength nm 623
Green wavelength nm 525
Blue wavelength nm 470
Panel input format (with video processor)   VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection   CAT6 cable/Fiber
Operating system   Windows(XP/Vista/7/8/10)
Control distance   Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.



Application:

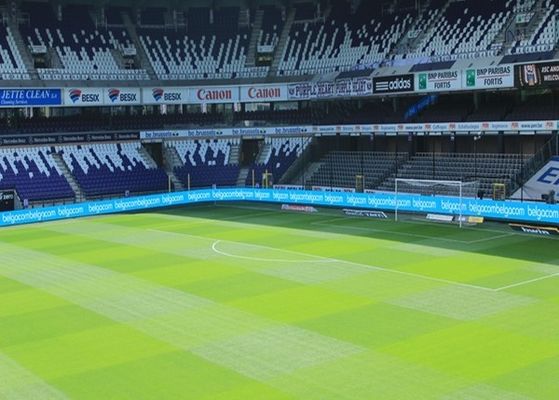

TBC Stadium Perimeter LED Screens are widely used for brand logo message advertising, live broadcasting in basketball, soccer, football, baseball stadium.
