Product Details:
|
Name: | LED Poster Display | Resolution/mm: | 2.5mm |
---|---|---|---|
LED Driving Method: | 1/32 Scan | LED Type: | SMD2121 |
Application: | Hotels, Restaurants, Shopping Malls, Banks, | Usage: | Indoor |
Pixels: | 2.5mm | Screen Dimension: | 640*1920mm |
Tube Chip Color: | Full Color | Display Function: | Video,Animation |
Brightness: | 1200cd/m2 | Warranty: | 3~5 Years |
Life Span: | 100000 Hours | Module Size: | 160x160mm/320*160mm |
Led Chip: | Epistar | Product Name: | Led Video Display Screen |
Color: | 1R1G1B | Pixel Density: | 16000dots/sqm |
Cabinet Size: | 640(L)*1920(H)mm | Pixel Pitch: | 2.5mm |
Refresh Rate: | 1920/3840 | Scan Mode: | 1/32 Scan |
High Light: | Epistar Chip Commercial Poster Display,1200cd/m2 Led Poster Screen,Epistar Chip Led Poster Screen |

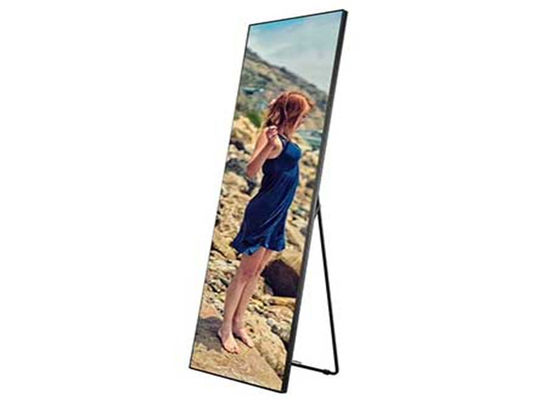

1200cd/M2 2.5mm Led Poster Screen , Epistar Chip Commercial Poster Display
Feature
1: Ultra-slim, only 35mm in thickness, while others led-posters are 45mm or so.
2: Light-weight, only 28kg in weight, while others led-posters are 32kg or so.
3: Easy to control, Phone APP(ViPlex Handy)/ USB/ HDMI accepted
4: Easy to move, we have installed wheels in the base.
5: Easy to link and split
6: So many ways to installation
Our LED poster is much different from others in the market. Being slim and light-weight, we can save a lot of money in the shipping; plus, it's so convenient to move the poster with the help of wheels (also, we can offer carry bag!).
Product specification
Item | Technical parameter |
Pixel Pitch | 2.5mm |
Module Resolution | 128*64 dots |
Module Size | 320*160mm |
Pixel configuration | 1R1G1B |
Module Chip | Kinglight/Nationstar |
Driving Method | 1/32Scan |
Physical Density | 160,000 dots/m2 |
LED Encapsulation | SMD2121 |
Module Port | BUH75 |
Module Consumption | ≤16W |
Brightness | 1200 cd/m2 |
Cabinet Dimension | 640*1920mm |
Cabinet External Dimensions | 700*1980*100mm |
Cabinet Resolution | 256*768 dots |
Quantities of module | 2*12 |
Cabinet Flatness | Tolerance of inter pixel ≤0.3mm |
Cabinet Material | Aluminume,Iron |
Cabinet Weight | 38KG |
Option Distance | 2--80M |
Viewing Angle | Horizontal 140° Vertical 120° |
Max. Power consumption | 675W/sqm |
Driving Device | ICN2153IC |
Frame Frequency | 60Hz |
Screen Flatness | Tolerance of cabinets ≤0.6mm |
Refresh Frequency | 1920Hz/3840Hz |
Control Mode | Wifi asynchronization |
Working Environment |
Temperature -10℃~60℃ Humidity 10%~70% |
Display Working Voltage | AC110V/220V , 50Hz/60Hz |
Colour temperature | 8500K-11500K |
Communication distance |
Network cable: 100m, Multi-model: 500m, Single-model fiber: 20km |
Gray scale | ≥16.7M |
MTBF | >10,000 hours |
Support video source | HDMI, CVBS, SDI , DVI etc |
Synchronized / asynchronous system
Plug and play, Cross-platform operation
Real time play by connecting to network;
The screen can be controlled with fixed or portable Windows,
IOS & Android devices.
The content can be refreshed and stored in built-in media player
through WIFI or USB to achieve asynchronous play.

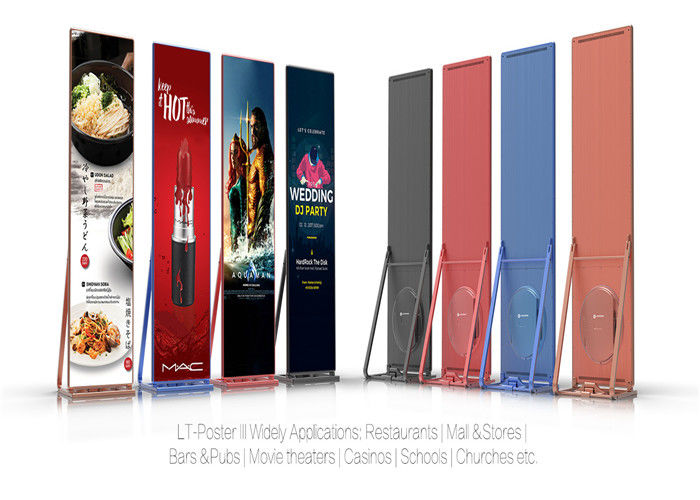

Multi-installation Method Suitable for lifting, wall-mounted, floor-standing and creative installation like inclined strut installation
Our Service and Mission
Our company has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
