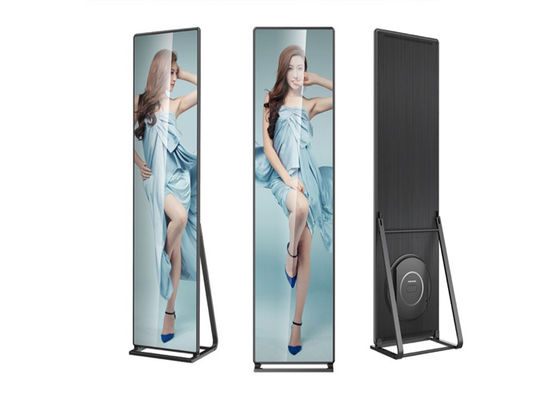

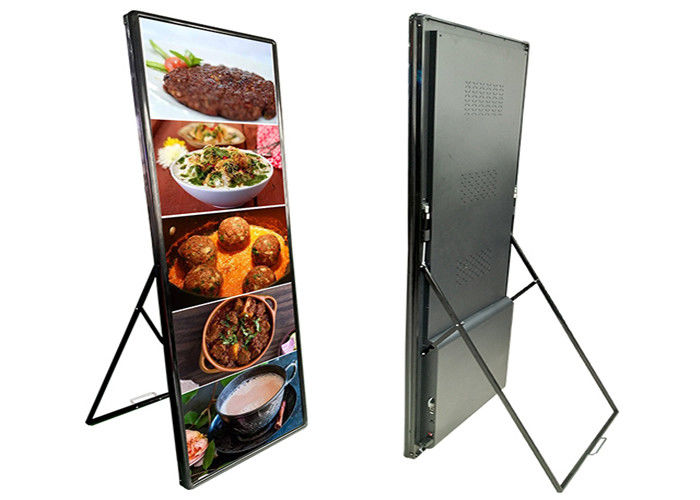

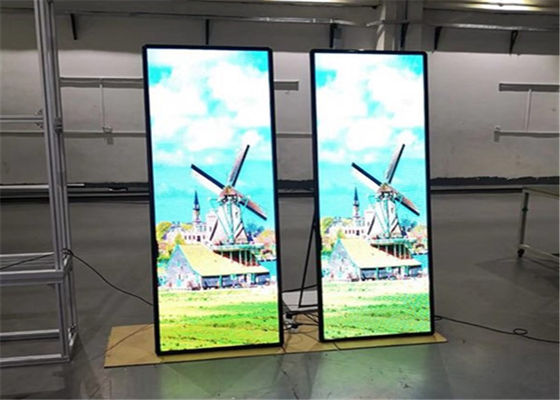

1200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span

I'm Online Chat Now

1200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span

1200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span
1200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span 1200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span 1200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span

Large Image :  1200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span

Product Details:
Place of Origin: Shen Zhen China
Brand Name: OEM
Certification: CE RoHS
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Flight case, Plywood case
Delivery Time: 10 working days after receiving the payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10K sqm per month

1200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span

Description
Name: LED Poster Display Resolution/mm: 2.5mm
Pixel Configuration: SMD1515 Viewing Angle: 160°
Display Area: 640*1920mm Application: Hotels, Restaurants, Shopping Malls, Banks,
Usage: Indoor Screen Dimension: 640*1920mm
Tube Chip Color: Full Color Display Function: Video,Animation
Brightness: 1200cd/m2 Warranty: 3~5 Years
Life Span: 100000 Hours Module Size: 320mm*160mm
Led Chip: Epistar Product Name: Indoor P2 P2.5 P3 P4 P5 P6 Poster Led Display For Shop Advertising
Color: 1R1G1B Cabinet Size: 640(L)*1920(H)mm
Refresh Rate: 1920/3840 Scan Mode: 1/32 Scan
High Light:

P2.5mm LED Poster Display

,

1200cd/m2 LED Poster Display

,

1200cd/m2 indoor led poster

P2.5mm HD LED Poster Display Floor Stand Ultra Thin Indoor Advertising Poster Led Mirror Display Screen

LED poster display, is almost the most popular led screen in recent years. and with slim and fashion outline, 7 color to choose . the most important is easy for software settings compared with traditional advertising ,also can show text, pictures, video, and sound with high resolution,high brightness .

P2.5mm HD LED Poster Display Floor Stand Ultra Thin Indoor Advertising Poster Led Mirror Display Screen

you can put it in your stores and install it by floor standing, wall mounted, hanging and stacking, even more than 2 screens can connect freely.
LED Poster is suitable for convention and exhibition center, shopping center, conference, hall, wedding, performance, airport station, supermarket. restaurant, movie studio and other occasions.

Feature
Die-casting aluminum panel, to achieve high precision process to seamless and good thermal
dissipation; to support the entire screen of any size to “a truly seamless splicing.
Utra light/thin
Multiple&optional installation modes
Plug&play operation
Live editing,upload & show
Unique mobile app control(IOS/Android)
surface protective cover design



Product specification



ItemTechnical parameter

Pixel Pitch

2.5mm

Module Resolution

128*64 dots

Module Size

320*160mm

Pixel configuration

1R1G1B

Module Chip

Kinglight/Nationstar

Driving Method

1/32Scan

Physical Density

160,000 dots/m2

LED Encapsulation

SMD2121

Module Port

BUH75

Module Consumption

≤16W

Brightness

1200 cd/m2

Cabinet Dimension

640*1920mm

Cabinet External Dimensions

700*1980*100mm

Cabinet Resolution

256*768 dots

Quantities of module

2*12

Cabinet Flatness

Tolerance of inter pixel ≤0.3mm

Cabinet Material

Aluminume,Iron

Cabinet Weight

38KG

Option Distance

2--80M

Viewing Angle

Horizontal 140° Vertical 120°

Max. Power consumption

675W/sqm

Driving Device

ICN2153IC

Frame Frequency

60Hz

Screen Flatness

Tolerance of cabinets ≤0.6mm

Refresh Frequency

1920Hz/3840Hz

Control Mode

Wifi asynchronization

Working Environment

Temperature -10℃~60℃
Humidity 10%~70%

Display Working Voltage

AC110V/220V , 50Hz/60Hz

Colour temperature

8500K-11500K

Communication distance

Network cable: 100m, Multi-model: 500m,
Single-model fiber: 20km

Gray scale

≥16.7M

MTBF>10,000 hours
Support video sourceHDMI, CVBS, SDI , DVI etc



1200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span 01200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span 11200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span 21200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span 31200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span 41200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span 51200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span 61200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span 7




How LED Poster Works - Topology Diagram

1200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span 8
Dimension

1200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span 9

Packaging

1200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span 10

Key Features

1200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span 11



1200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span 121200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span 131200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span 14

1200cd/m2 SMD1515 P2.5mm LED Poster Display 100000 Hours Life Span 15

Our Service and Mission

Our company has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and s
o on.
