Product Details:
|
Pixel: | 8mm | Color: | Full Color |
---|---|---|---|
LEDs: | SMD | IP Class: | IP65 |
Cabinet: | Aluminium | Safety: | FIFA Standard |
High Light: | 1920x960mm Football Stadium Led Display,1920x960mm Outdoor Led Tv Display,ETL FCC Football Stadium Led Display |
1920x960mm Football Stadium Led Display , ETL FCC Outdoor Led Tv Display
Quick Details:
1, Pixel Pitch: 8mm.
2, Full color: 281trillions.
3, SMD, viewing angle: 160°/ 160°.
4, Aluminium cabinet, stadium, rental dual usage.
5, Dustproof and waterproof: IP65.
6, Standard cabinet size: 960×960x150mm, customized cabinet: 1280x960mm or 1920x960mm.
Description:
Stadium Perimeter LED Displays include outdoor led screen: 8mm, 10mm, 12mm and indoor led perimeter: 6mm and 10mm.
Features and Advantages:
1. Anti-collision design, preventing the players and the LEDs from crush.
2. Soft shield design ,improve the safety of protecting players and workers.
3. Support various media format, from words, images, to video. More clear, more vivid, higher viewing experience.
4. The picture content chaninging ,can play video ,picture ,text etc formats,more colorful ,high definition ,long viewing distance.
5. Adopting control system, power and signal bakcup technology, improving site disiplay performance and protecting advertisers benifits.

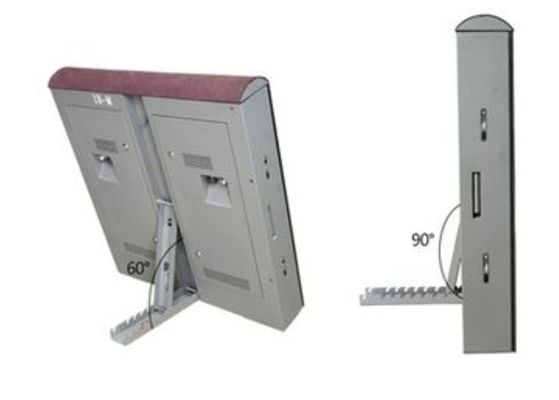

6. Humanization design: Fast lock design on the side, improves screen smoothness and saves assembling, programming labor. Supporting Structure desing reduces the spaces, and can be get into the cabinet after folding.
Parameters:
Parameter | Unit | Value | ||
Brightness | nits | 6000 | ||
Color temperature | deg.k | 3200 ~ 9300 | ||
Viewing angle - Horizontal | deg. | 160(+80/-80) | ||
Viewing angle - Vertical | deg. | 160(+80/-80) | ||
Cabinet weight | kg | 50 | ||
Cabinet width | mm | 960 | ||
Cabinet height | mm | 960 | ||
Cabinet depth | mm | 150 | ||
Cabinet area | sq. m. | 0.92 | ||
Cabinet material | Cold Steel | |||
Aspect ratio | 4:3 | |||
Ingress protection (Front/Rear) | IP | IP65/IP54 | ||
Operating temperature range | deg. C | - 20 to 50 | ||
Operating humidity range | HR | 10% to 90% | ||
Pixel type and configuration | R/G/B | SMD 3in1 | ||
Pixel pitch | mm | 8 | ||
Pixel matrix per cabinet | 120x120 | |||
Pixels per cabinet | 14400 | |||
Lines per meter | 125 | |||
Pixels per sq. meter | 15625 | |||
LEDs per sq. meter | 15625 | |||
Recommended minimum viewing distance | m | 8 | ||
Colours | 281trillion | |||
Gray scale | Levels | 65536 levels per colour | ||
Brightness control | Levels | 100 | ||
Digital processing | bit | 16 | ||
Frame rate | Hertz | 60 | ||
Display refresh rate | Hertz | 1920 | ||
Input voltage | VAC | 110/240 | ||
Input power frequency | Hertz | 50/60 | ||
Input power (max/avg) | Watts per sq.m | 850/290 | ||
MTBF | Hours | ≥10000 | ||
Lifetime (50%Brightness) | Hours | ≥100000 | ||
Module brightness uniformity | <5% | |||
Blind spot rate | <0.0001 | |||
Earth leakage current | mA | <2 | ||
Red wavelength | nm | 623 | ||
Green wavelength | nm | 525 | ||
Blue wavelength | nm | 470 | ||
Panel input format (with video processor) | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV | |||
Data interconnection | CAT6 cable/Fiber | |||
Operating system | Windows(XP/Vista/7/8/10) | |||
Control distance | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. |
