Commercial SMD2121 P3mm LED Poster Display For Chain Shops
Feature
) Support all kinds of videos, graphics, pictures, files, text, and etc.
2) Engergy-saving. Using high brightness LEDs with low power consumption.
3) Reliability-- Support 24/7 working without any faulty.
4) Intelligent control-- Support synchronization, asynchronization, wireless control(3G, WIFI), or Cluster control.
5) Modular design for easy installation and maintenance
6) Brightness can be adjustable
7) Wide viewing angle and longer viewing distance for more audiences.
Applicable field:
Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
Non-profit Organizations:Telecommunications, post offices, hospital, schools;
Public Places:subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainments:Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
Product specification
| indoor P3 poster LED Display |
| Lamp size |
SMD2121 |
| Resolution/mm |
3mm |
| Pixel configuration |
RGB 3 in 1 |
| Pixel density/pixels/m² |
111111/m² |
| Module resolution |
64x64 |
| Module size/mm |
192*192mm |
| View distance |
≥0.5m |
| Single point brightness adjust |
Can be added |
| Single point color adjust |
Can be added |
| White balance brightness |
>1500cd/㎡ |
| Color temperature |
6500K-9500K |
| Horizontal view angle |
120(degrees) |
| Vertical view angle |
60(degrees) |
| Signal Process bit |
10 or 14 bit |
| Grey process |
1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances |
Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode |
Constant driving current |
| Scanning mode |
1/32 |
| Frame rate |
60Hz |
| Refresh frequency |
>1920Hz |
| Control mode |
Computer synchronous |
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
|
| Out of control point |
<1/10000 |
| Working hours |
≥72hours |
| Mean Time Between Failure |
>5000hours |
| Life time |
100000hours |
| Life-all-white(brightness halving) |
50000hours |
| Environment temperature range |
Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ |
| Maximum power:/㎡ |
<1000W |
| Average power:/㎡ |
<280W |
| Self-check technology |
LED spot self-check, communications check, power check,
temperature monitor(need customization)
|
| Remote monitoring |
Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
|
| Software environment |
WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres |
Deviation<3% |
| Brightness uniformity |
<10% |
| Color uniformity(chromaticity coordinate) |
±0.003 |
| Power supply request |
AC85-264V(50Hz-60Hz) |
| Contrast |
(1000:1) |
| System protection |
Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) |
working:10-95% |
| Humidity(storing) |
storing:10-95% |

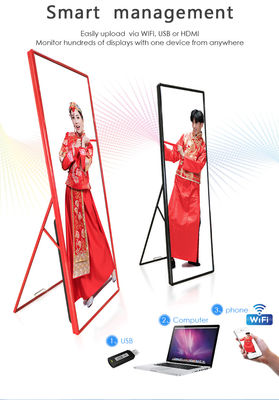

Control Methods
Synchronized / asynchronous system
Plug and play, Cross-platform operation
Real time play by connecting to network;
The screen can be controlled with fixed or portable Windows,
IOS & Android devices.
The content can be refreshed and stored in built-in media player
through WIFI or USB to achieve asynchronous play.
Multi-installation Method
Multi-installation Method Suitable for lifting, wall-mounted, floor-standing and creative installation like inclined strut installation
Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
