IP43 200*150mm 1.25mm HD Small Pitch LED Display Wide Viewing Angle

I'm Online Chat Now

IP43 200*150mm 1.25mm HD Small Pitch LED Display Wide Viewing Angle

IP43 200*150mm 1.25mm HD Small Pitch LED Display Wide Viewing Angle
IP43 200*150mm 1.25mm HD Small Pitch LED Display Wide Viewing Angle

Large Image :  IP43 200*150mm 1.25mm HD Small Pitch LED Display Wide Viewing Angle

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE ROHS
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 10㎡
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 10-20 days
Payment Terms: L/C, T/T
Supply Ability: 8000㎡/month

IP43 200*150mm 1.25mm HD Small Pitch LED Display Wide Viewing Angle

Module Size: 200*150mm Module Resolution: Module Resolution
Power Supply: AC220V/50HZ AC110/60HZ Earth Leakage Current: <2mA
Working Temperature: -25℃ To 45℃ Working Environment Humidity: 10%-50%
High Light:

1.25mm HD Small Pitch LED Display


IP43 200*150mm Small Pitch LED Display


1.25mm small pixel pitch led screen

HD Small Pitch LED Display Thin Design Front Rear Access Wide Viewing Angle




Lightweight: The aluminum die-casting technology makes the single cabinet as light as 6 KG.

  • Wide viewing angle: The specially designed masks can make the horizontal viewing angle up to 120 degrees.
  • Seamless connection: The aluminum die-casting technology, together with white the high-precision CNC procession, makes the precision reach±0.05mm so as to achieve seamless assembly.
  • Low power consumption: Combined with the brightness auto-adjusting technology and PFC power supply, low current can save energy over 35%, which in other words is to save money.
  • Easy to maintain: No need to disassemble the whole screen for maintenance. Each component can be detached individually for that purpose.
  • Noiseless: The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent.
  • Ghost canceling: Exquisite and clear picture quality with no ghost. Both upstream and downstream ghosts can be automatically canceled.
  • High refresh rate: Over 2880Hz refresh rate to ensure the picture wrinkle-less,line-less and stable.9
  • Low brightness and High grayscale: 14Bit-16Bit gray scale to bring excellent performance when brightness is reduced to 20%.


Full color screens are widely used in government and enterprise projects, exhibitions, cultural tourism, commercial real estate, outdoor advertising media and other fields. For example: supermarkets, restaurants, travel agencies, commercial plazas, cinemas, clubs, schools, hotels, hospitals, communities, commercial buildings, subway stations, airports, etc.

In short, many places need led screens for various purposes, we will do our best to meet trends and needs.




Module size:200*150mm Module resolution:160*120
Module type: light and drive in one Drive mode: constant current drive
Module working voltage: +4.2V Point spacing:1.25mm
Module average power: 12W Pixel composition:1R1G1B
Module maximum power: 26W Vertical viewing angle:140°


Specification (parameter):

Unit cabinet

Module distribution 2*2 block
Cabinet resolution 320*240

Maximum power of


Cabinet average power 52W
Module uniformity <5%
Cabinet size 400*300mm
Cabinet color black, grey

Protection degree




Full screen

Application indoor
White balance brightness ≥700cd/m2
Color temperature 9600K
Pixel density (dots/square meter) 640000
Power supply AC220V/50HZ AC110/60HZ
Earth leakage current <2mA
Working temperature -25℃ to 45℃

Working environment


Environmental temperature -40℃ to 80℃
Frame change frequency 60Hz
Refresh rate ≥3000Hz
Optimum line of sight ≥1.25m
Grayscale/color 281 trillion

Brightness adjustment


Software 16-level adjustment / 16-level automatic

control mode Synchronized displays with computer screen


Competitive advantages:

  • Installation service, usually we are not responsible for overseas installation, but we can provide technical support for you. If you need this, we can arrange our technicians to your country, but the cost is paid by the customer.
  • Free lifetime maintenance and software upgrades.
  • If you have any questions about the led display, we will reply you within 24 hours, and provide maintenance instructions and problem resolution within 48 hours.
  • Providing customers with loaders so they can use the display immediately after installation
  • Led display, no need to debug
  • Free technical training about how to use and process software.

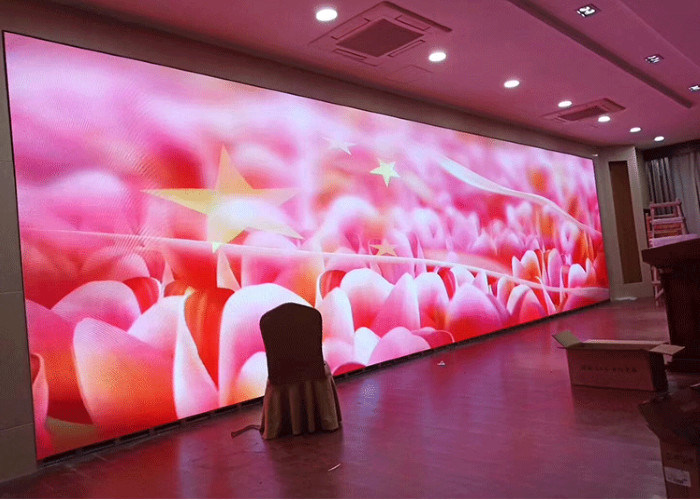

IP43 200*150mm 1.25mm HD Small Pitch LED Display Wide Viewing Angle 0

Our serrvices
1. Service before sales
On-site inspect
Professional design
Solution confirmation
Training before operation
Software use
Safe operation
Equipments maintenance
Installation debugging
Installation guidance
On-site debugging
Delivery Confirmation

2. After sale service
Quick response
Prompt question resolving
Service tracing
3. Service concept:
Timeliness, considerateness, integrity, satisfaction service.
We are always insisting on our service concept, and proud of the trust and reputation from our clients.
4. Service Mission
Answer any question; Deal with all the complaint; Prompt customer service
We had developed our service organization by responding to and meeting the diverse and demanding needs of customers by service mission. We had become a cost-effective, highly skilled service organization.
5. Service Goal:
What you have thought about is what we need to do well; We must and will do our best to fulfill our promise. We always bear this service goal in mind. We can't boast the best, yet we will do our best to free customers from worries. When you get problems, we had already put forward solutions before you.




  • What is the payment method?
  • We support a variety of payment methods, the most common is the TT;
  • How about your production ability?
  • We have 10 production lines with all series of automatic production machines. Monthly production ability: 200,000pcs of led modules and 4,000sqm of assembled led displays;
  • What's the controlling system?
  • Our standard controlling system for this model is Linsn/ Novastar. Also support other controlling system,like HD,Xixun,TF, Colorlight, etc;
  • Are you manufacturer or trading company?
  • We are manufacturer with professional marketing and service team;
  • Besides this product, may I have other options?
  • Yes, my dear friend. Many thanks for finish the details of this product. If it is not what you're looking for, you can also choose other items. we have HD indoor led display, full color for outdoor and indoor; Different cabinet, Steel Cabinet, Aluminum Cabinet, Die Cast Aluminum Cabinet, etc; The pixel pitch is from 1.5mm to 20mm. We also have LED advertising player and kinds of video processor;
  • Can it play HD video?
  • Yes, it can realize HD video function with Linsn/nova controlling system;
