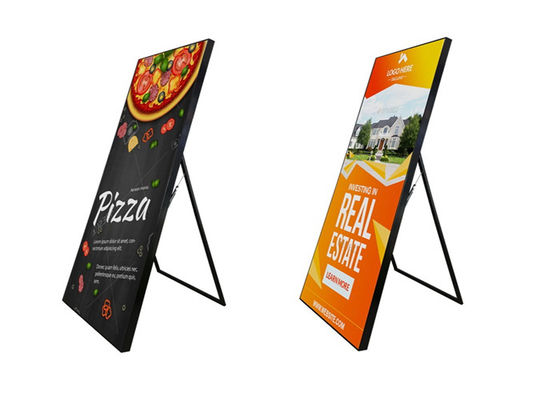

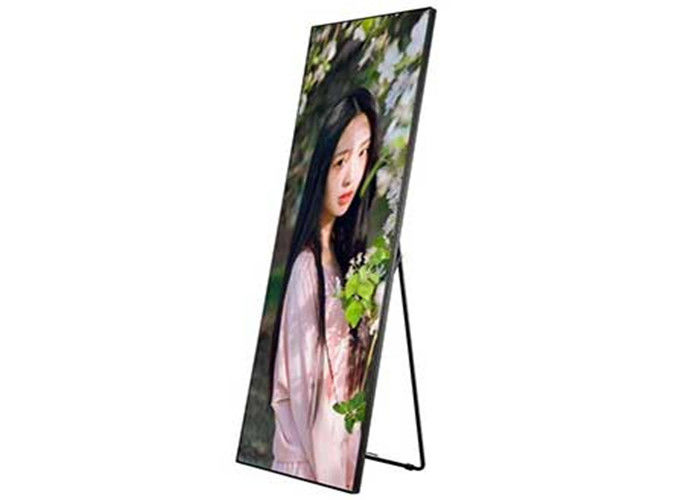

Portable 1R1G1B Digital Poster Display , SMD2121 3mm Led Poster Board

I'm Online Chat Now

Portable 1R1G1B Digital Poster Display , SMD2121 3mm Led Poster Board

Portable 1R1G1B Digital Poster Display , SMD2121 3mm Led Poster Board
Portable 1R1G1B Digital Poster Display , SMD2121 3mm Led Poster Board Portable 1R1G1B Digital Poster Display , SMD2121 3mm Led Poster Board Portable 1R1G1B Digital Poster Display , SMD2121 3mm Led Poster Board

Large Image :  Portable 1R1G1B Digital Poster Display , SMD2121 3mm Led Poster Board

Product Details:
Place of Origin: Shen Zhen China
Brand Name: OEM
Certification: CE RoHS
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Flight case, Plywood case
Delivery Time: 10 working days after receiving the payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10K sqm per month

Portable 1R1G1B Digital Poster Display , SMD2121 3mm Led Poster Board

Description
Name: LED Poster Display Resolution/mm: 3mm
LED Driving Method: 1/32 Scan LED Module Size(mm): 192*192mm
LED Type: SMD2121 Application: Hotels, Restaurants, Shopping Malls, Banks,
Usage: Indoor Pixels: 3mm
Screen Dimension: Customized Tube Chip Color: Full Color
Display Function: Video,Animation Brightness: 1200 Cd/m2
Warranty: 3~5 Years Life Span: 100000 Hours
Led Chip: Epistar Product Name: Indoor P2 P2.5 P3 P4 P5 P6 Poster Led Display For Shop Advertising,Led Video Display Screen
Color: 1R1G1B Pixel Density: 111111 Dots/m2
Refresh Rate: 1920/3840 Scan Mode: 1/32 Scan
High Light:

SMD2121 1R1G1B Digital Poster Display

,

SMD2121 3mm Led Poster Board

,

SMD2121 3mm Digital Poster Display

Portable 576*1920mm Digital Poster Display , SMD2121 3mm Led Poster Board​





Poster LED Display Player Advantages:

* Die-casting aluminum panel, to achieve high precision process to seamless and good thermal dissipation; to support the entire screen of any size to a truly seamless splicing.

* Point by point highlights, color calibration, making sure whole screen brightness and color consistency with highly reductive.

* Wide viewing angle, high contrast (3000: 1), high brightness (adjustable), high intensity (14bit gradation processing), high refresh (2880HZ refresh rate ;), softer image, display lifelike images to meet the high-speed motion picture display.

* Low brightness with high grayscale:adjustable screen brightness and height to meet different requirements on brightness in different indoor place; Beautiful picture; perfect screen performance.

* Light LED panel with smaller space and easy for transportation and assembly.

* Professional video splicing system; supporting a variety of processor synchronization signal fidelity display.





Product specification



Item Technical parameter
Pixel Pitch 3mm
Module Resolution 64*64dots
Module Size 192*192mm
Pixel configuration 1R1G1B
Module Chip Kinglight/Nationstar
Driving Method 1/32Scan
Physical Density 111,111 dots/m2
LED Encapsulation SMD2121
Module Port BUH75
Module Consumption ≤16W
Brightness 1200 cd/m2
Cabinet Dimension 576*1920mm
Cabinet External Dimensions 636*1980*100mm
Cabinet Resolution 192*640 dots
Quantities of module 3*10
Cabinet Flatness Tolerance of inter pixel ≤0.3mm
Cabinet Material Aluminume,Iron
Cabinet Weight 38KG
Option Distance 2--80M
Viewing Angle Horizontal 140° Vertical 120°
Max. Power consumption 675W/sqm
Driving Device ICN2153IC
Frame Frequency 60Hz
Screen Flatness Tolerance of cabinets ≤0.6mm
Refresh Frequency 1920Hz/3840Hz
Control Mode Wifi asynchronization
Working Environment

Temperature -10℃~60℃

Humidity 10%~70%

Display Working Voltage AC110V/220V , 50Hz/60Hz
Colour temperature 8500K-11500K
Communication distance

Network cable: 100m, Multi-model: 500m,

Single-model fiber: 20km

Gray scale ≥16.7M
MTBF >10,000 hours
Support video source HDMI, CVBS, SDI , DVI etc





Portable 1R1G1B Digital Poster Display , SMD2121 3mm Led Poster Board 0Portable 1R1G1B Digital Poster Display , SMD2121 3mm Led Poster Board 1Portable 1R1G1B Digital Poster Display , SMD2121 3mm Led Poster Board 2Portable 1R1G1B Digital Poster Display , SMD2121 3mm Led Poster Board 3




Control Methods

Synchronized / asynchronous system
Plug and play, Cross-platform operation
Real time play by connecting to network;
The screen can be controlled with fixed or portable Windows,
IOS & Android devices.
The content can be refreshed and stored in built-in media player
through WIFI or USB to achieve asynchronous play.

Portable 1R1G1B Digital Poster Display , SMD2121 3mm Led Poster Board 4

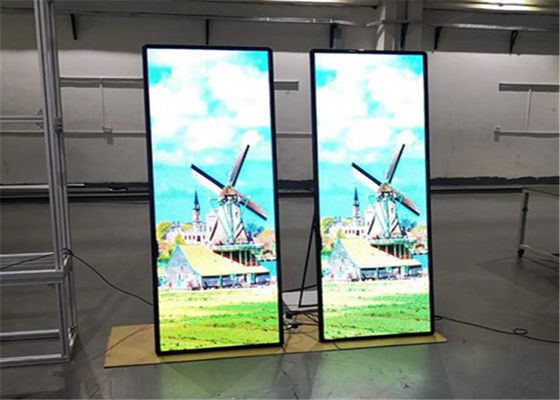

Multi-installation Method

Multi-installation Method Suitable for lifting, wall-mounted, floor-standing and creative installation like inclined strut installation

Portable 1R1G1B Digital Poster Display , SMD2121 3mm Led Poster Board 5
