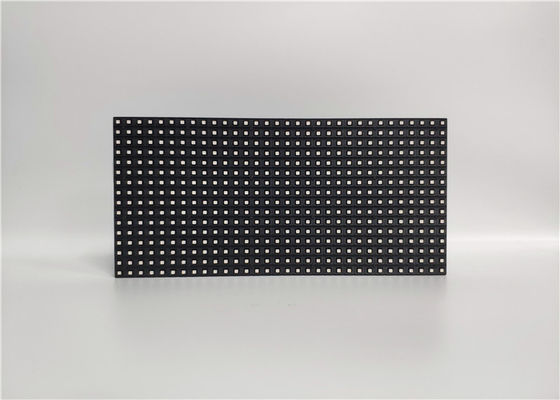

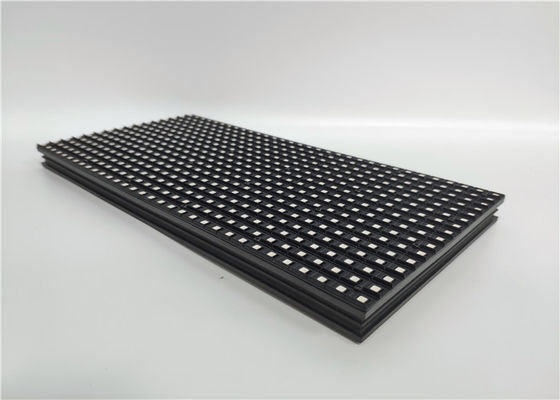

320x160mm P8 Outdoor Led Screen , SMD3535 Commercial Advertising LED Display
Product Features
1. To ensure the clearness of graphics and texts, as to the indoor display within 100sqm,the same level of red,green and blue LED lamps with the same brightness( ±10%)and wave length( ±2.5nm) are chosen.
2. We apply sophisticated technology of plastic closure,each module of the horizontal height less than 0.1mm.Therefore,our displays have good color uniformities ,homogeneity,which is unique in the LED display field.
3. Module design makes it convenient to assemble and also ensure that the cabinets are nice-looking.
4. The price is competitive among the same products in market and the quality is assured.
SPECIFICATION OF Q8 Outdoor Advertising LED Display Screen
| Model |
Q8 |
| Pixel pitch(mm) |
8 |
| Configuration |
SMD3535 |
| Module dimension(mm) |
320x160 |
| Module weight(kg) |
0.5 |

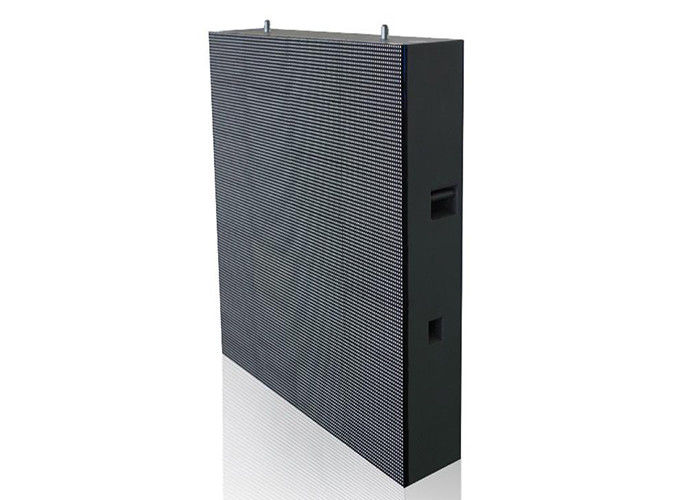

| Cabinet dimension(mm) |
960x960x120 |
| Pixel density(dots/㎡) |
15625 |
| Flatness error(mm) |
≤0.1 |
| Viewing angle |
140°/140°(Horizontal/Vertical) |
| Brightness(cd/㎡) |
6600 |
| Color temperature(K) |
5000~9500 |
| Contrast |
4000:1 |
| Repetition frequency |
50/60Hz |
| Refresh frequency(Hz) |
1920 |
| Gray scale |
65536 |
| Ave. power(W/㎡) |
400 |
| Max power(W/㎡) |
800 |
| Working temp./humidity |
-10~40℃/10%~80%RH |
| Storing temp./humidity |
-20~60℃/10%~85%RH |
| Cabinet material |
Iron/Aluminum |
| Maintenance |
Rear |
| Protection |
IP65/IP65 |
| Driving mode |
Constant current driver |
| Scanning |
1/4 |
| Power requirements |
AC90~264V, 47~63Hz |
| Life time(hrs) |
100,000 |
| Certificate |
CE ROHS FCC UL ETL, etc. |
Advantages Q8 Outdoor Advertising LED Display Screen
1. Q8 is high refresh rate, high brightness and high contrast which make the screen with no delay
and smear phenomenon in direct sunlight.
2. Q8 is energy saving: Low electric current, high-bright lamps, equipped with PFC switching
power supply that save 30% electricity.
3. The brightness of Lecede Q8 is adjustable to meet the need of changing environment.
4. suitable for wide horizontal.
5. Q8 is environment protection, antistatic, dust-proof, good heat dissipation, cost-effective.
Benefits of Q8 Outdoor Advertising LED Display Screen
Q8 outdoor advertising LED display screen has many benefits. First of all, the image of our Q8
outdoor LED screens is extremely clear and furthermore the vivid colours ensure that your adverts pop
out and come to life! Another benefit is that the content can be easily adjusted to any situation with
our user-friendly software. Reliable in practically all weather conditions, from polar cold to desert heat.
Our service
1) Reply your inquiry in 24 working hours.
2) Experienced staffs answer all your query in fluent English,Spanish,French,German etc
3) Customized design is available,OEM & ODM are welcomed.
4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5) Special discount and protection of sales area provided to our distributor.
6) Warmly welcome your visit in our company if available.
7 ) Guidance service: We can guide on line if customers have questions about the installation and usage.
For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go to customer's country for on-site guidance.
8) Warranty period: 2 years after shipment.
