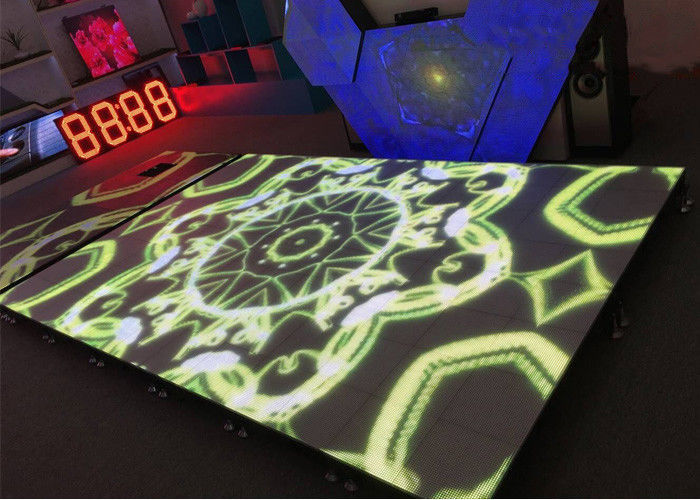

Interactive SMD2727 6.25mm Portable Disco Dance Floor Energy Saving
Application area

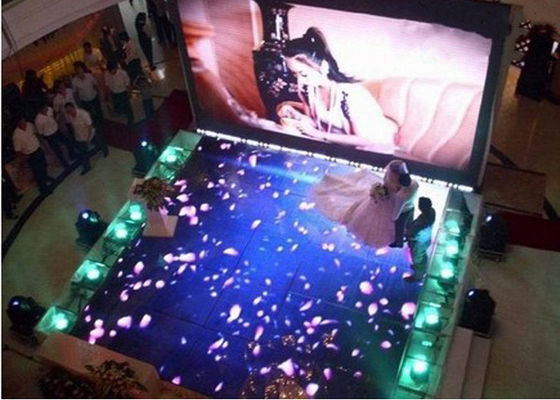

It widely use in Commercial show,Mode stage show,Car exhibition,
Disco/Nightclub/wedding use P6.25 dance floor led display,Stage, concerts,Club, TV shows,live shows,
Party,stage lighting,vocal concert,beauty pageant competitions,Disco,Nightclub,wedding
and other some lmportant activities.
Features
1. Adopting quick locking mechanism on the Up, down, left and right connection. Tighten two cabinet up with pull and turn the two handles by 90 degrees
2. Light weight enable one-person installation easier and simpler, save installation time. But traditional HD stage led display is over 25 Kg with the same size
3. Ultra-slim design,metal housing,non-skid treatment toughened glass cover
4. Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
5. Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
1)Module specification
| 1 |
Pixel Pitch |
6.25 mm |
| 2 |
Pixel Configuration |
SMD 2727 |
| 3 |
Module Resolution |
40*40 dots |
| 4 |
Module Pixles |
1600 dots |
| 5 |
Module Size |
250*250 mm |
2)Cabinet specification
| 1 |
Cabinet Size(W*H*D) |
500*500 mm |
| 2 |
Cabinet Resolution |
80 * 80 dots |
| 3 |
Cabinet Pixels |
6400 dots |
| 4 |
Average Power Consumption |
280W/m2 |
| 5 |
Max. Power Consumption |
680W/m2 |
| 6 |
Weight cabinet |
35 kg/m2 |
3)Screen specification
| 1 |
Screen Area |
Customized |
| 2 |
Cabinet Quantity |
According to the screen size |
| 3 |
Brightness |
≥4000cd/㎡ |
| 4 |
Brightness(Max./Min.) |
1.2:1 |
| 5 |
Driving Method |
1/6 Scan |
| 6 |
View Angle |
Horizontal140° Vertical 140° |
| 7 |
Pixel Pitch |
6.25mm |
| 9 |
Fresh requency |
>2000 HZ |
| 10 |
Frame Frequency |
50 -- 60Hz |
| 11 |
Input Voltage |
AC220V/50Hz or AC110V/60Hz |
| 12 |
Defects Rate |
≤0.00001 |
| 13 |
Power Consumption |
Max: 680W/㎡ Average: 280W/㎡ |
| 14 |
MTBF |
>10,000 hours |
| 15 |
Life span |
≥100,000 hours |
| 16 |
Module Display Brightness Uniformity |
<3% |
| 17 |
Earth Leakage Current |
<3mA |
| 18 |
Protective Grade |
IP65 |
| 19 |
Temperature-operating |
﹣25℃～60℃ |
| 20 |
Humidity-operating |
10%～95% |
| 21 |
Brightness control |
0～256 adjustable |
| 22 |
Controlling system |
Novastar,linsn |
| 23 |
Power supply |
G-energy/Meanwell |
