Product Details:
|
Name: | Mobile Truck LED Display | Resolution/mm: | 8mm |
---|---|---|---|
Pixel Configuration: | 1R1G1B | Pixel Density/pixels/m²: | 15625 Px/m2 |
Module Size/mm: | 256*128MM | ||
High Light: | 256*128mm Truck Led Panel,P8mm Truck Led Panel,5500nits Mobile Led Signs For Rent |

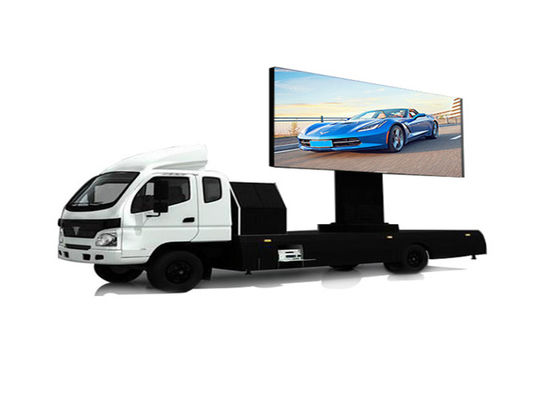

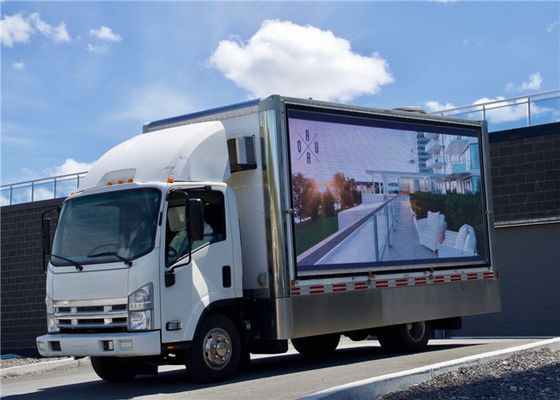

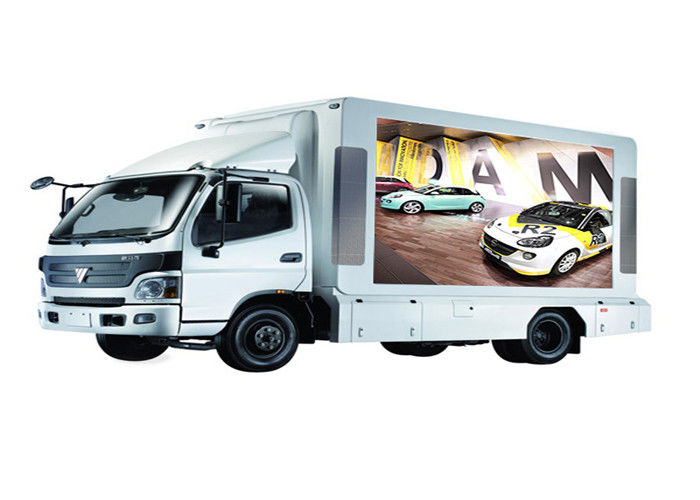

P8mm 256*128mm Truck Led Panel , 5500nits Mobile Led Signs For Rent
Application and Market
1. Application
Widely use in stadiums, advertisement, banks, securities exchange, stations, shopping malls,postal offices, schools, restaurants, entertainment, enterprises ,highway etc Big Outdoor Full Color
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East,Eastern Asia, Western Europe
Features
1. Movable. It can be a truck box, or trailer powered by truck. The set up and dismantling time can be less than 30minutes and ready for transportation to next event;
2. Self-contained generator. we are utilizing low noise generator and by using this the mobile truck LED screen can easily and freely go and locate anywhere anytime that needs a screen;
3. Hydraulic system.The hydraulic lift system make it easy and convenient to rise the LED display and turn around 360 degrees,facing the audience to outreach entertainment value and advertising revenue;
4. By using power distributor box,it can prevent the damage caused by the high pulse voltage at the start, brake or stop of trailer.
5. Self-contained control room.Providing MINI multimedia control room which supports multiple formats of the signal input mode,can use standard internet cable, GPRS,3G wireless control system etc.
Details
Pixel Pitch | 8mm |
Pixel Density | 15625 px/m2 |
LED Type | SMD3535 |
LED Configuration | 1R1G1B |
Cabinet Dimension | 1280*960mm |
Cabinet Resolution | 160*120px |
Cabinet Weight | 79kg |
Cabinet Material | cold steel |
Ingress Protection (front/rear) |
IP65/IP54 |
Brightness | >5500nits |
Viewing Angle(H/V) | 140°/140° |
Driving Method | 1/4 Scan |
Power Consumption(avg.) | 250w/m2 |
Frame Refresh | ≥ 60Hz |
Data Refresh Rate | ≥ 1500Hz |
Gray Scale | 16bit |
Power Supply | AC 110/220±10% 50~60Hz |
Temperature (operating/storage) |
-20~50°C / -40~60°C |
Humidity(operating/storage) | 10%~90%RH 10%~85%RH |
MTBF | ≥1000 Hours |
Life Span | ≥100000 Hours |
Pixel Failure | <0.0003 |
Our service:
1). Your inquiry related to our products or prices will be replied in 24hrs.
2). Well-trained and experienced staffs to answer all your enquires in fluent English .
3). OEM&ODM, any your customized screen we can help you to design and put into product.
4). are offered for your unique design and some our current models .
5). Protection of your sales area, ideas of design and all your private information
