Product Details:
|
Product Name: | P7.81 LED Screen | Warranty: | 2 Years |
---|---|---|---|
Pixel Pitch: | 7.81mm | Panel Size: | 1000mmx500mm |
Refresh Rate: | 3840HZ | Contrast Ratio: | 4000:1 |
High Light: | 3840HZ P7.81 clear led screen,3840HZ Glass Window LED Display,3840HZ see through led screens |
Full Color Glass Window LED Display , 3840HZ P7.81 Clear Led Screen
Features:
1. High Transparency and Concise:68-80% transparency rate among different pitches; hidden cable design looks clean and concise; Variable brightness options for day and night enviroment.
2. Slim, Light Weight and Quiet:35mm-45mm thickness;14 kg/m²; Available to attach onto glass wall directly.
3. Special Emitting Angle:Lighting from tube side emitting; brightness and color are penetrated via the glass effect; Embedded-In SMD technology, avoid to be knocked off during transportation and installation.
4. Low release heat: low noise, low consumption, low cost, excellent thermal design and excellent thermal dispersion.
Specification:
Parameter | Value | Unit |
Pixel pitch | 7.81 | mm |
Brightness | ≥5500 | nit |
Color temperature | 6500 | K |
Viewing angle-H | 140 (﹢70/﹣70) | deg. |
Viewing angle-V | 140 (﹢70/﹣70) | deg. |
Cabinet weight | 4 | kg |
Cabinet size (W×H) | 1000x500 | mm |
Cabinet area | 0.5 | sq.m. |
Cabinet material | aluminum die casting | — |
Ingress protection (Front/Rear) | indoor use ( GOB for outdoor) | — |
Operating temperature | ﹣40 ~﹢65 | ℃ |
Operating humidity | 10% ~ 90% | — |
Pixel configuration | SMD 2525 | R,G,B |
Module size | 500mmx125mm | mm |
Pixel matrix per module | 64 x 16 | dot |
Pixels per cabinet | 1000×500 | dot |
Pixels per sq.m. | 16384 | dot |
Minimum viewing distance | 10 | m |
Gray scale | 4096 | level |
Refresh frequency | >3840 | Hz |
Driving mode | constant 1/6 | — |
Input voltage (AC) | 100 ~ 240 | V |

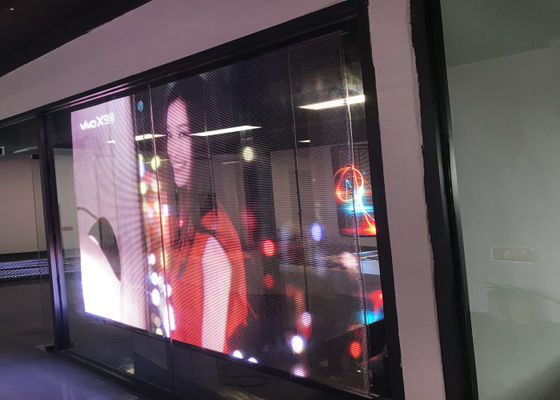

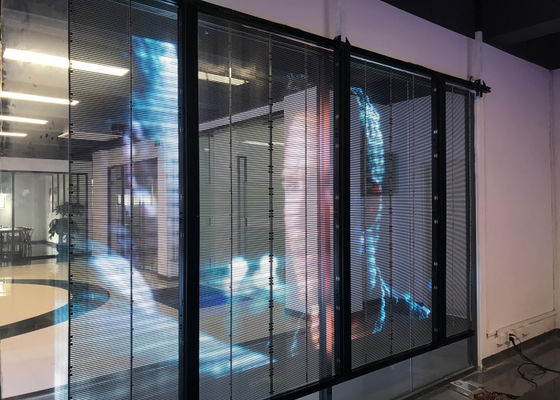

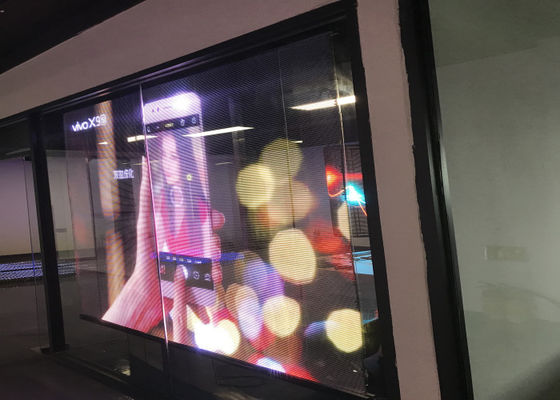

Panel photos and screen aging photos in factory:
Application:
Frameless structure glass display can directly stick to the inside part of the glass wall by special designed glue, and it will connect with the glass wall firmly. Thus decrease the installation difficulty and cost greatly. Wide use range. Glass wall LED display can be installed in such as a bank, supermarket, theater, business street, hotel, public civic buildings, and landmark buildings, even in rental events market.
