Slim P2.5mm 480*1920mm LED Poster Display For 4S Shop CE RoHS Certified

I'm Online Chat Now

Slim P2.5mm 480*1920mm LED Poster Display For 4S Shop CE RoHS Certified

Slim P2.5mm 480*1920mm LED Poster Display For 4S Shop CE RoHS Certified
Slim P2.5mm 480*1920mm LED Poster Display For 4S Shop CE RoHS Certified Slim P2.5mm 480*1920mm LED Poster Display For 4S Shop CE RoHS Certified Slim P2.5mm 480*1920mm LED Poster Display For 4S Shop CE RoHS Certified

Large Image :  Slim P2.5mm 480*1920mm LED Poster Display For 4S Shop CE RoHS Certified

Product Details:
Place of Origin: Shen Zhen China
Brand Name: OEM
Certification: CE RoHS
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Flight case, Plywood case
Delivery Time: 10 working days after receiving the payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10K sqm per month

Slim P2.5mm 480*1920mm LED Poster Display For 4S Shop CE RoHS Certified

Description
Name: LED Poster Display Resolution/mm: 2.5mm
LED Driving Method: 1/32 Scan Resolution(W× H): 128×64
LED Module Size(mm): 320×160 Application: Hotels, Restaurants, Shopping Malls, Banks,
Usage: Indoor Pixels: 2.5mm
Screen Dimension: 1920*480mm Tube Chip Color: Full Color
Display Function: Video,Animation Brightness: 1200 Cd/m2
Warranty: 3~5 Years Life Span: 100000 Hours
Module Size: 160x160mm/320*160mm Led Chip: Epistar
Product Name: P2.5 LED Poster Display,Indoor P2 P2.5 P3 P4 P5 P6 Poster Led Display For Shop Advertising Color: 1R1G1B
Pixel Density: 16000dots/sqm Pixel Pitch: 2.5mm
Refresh Rate: 1920/3840 Scan Mode: 1/32 Scan
High Light:

480*1920mm LED Poster Display

,

480*1920mm indoor led poster

,

CE RoHS LED Poster Display

Slim P2.5mm 480*1920mm LED Poster Display For 4S Shop CE RoHS Certified



Led Poster Display Features

1. Plug and play zero setting.
2. Support Ios&Android devices.
3. Easy to operate,it can be controled by WIFI and USB,even by the mobile APP.
4. Ultra-thin&Ultra light design,the weight is only 35kg/pcs and the thickness is 30mm.
5. Can support 10pcs unit linked together to get a large screen with HD 1080P.



Application
Public Places Entertainment Places.

Financial Institution Business Organizations.

Public Service Real Estate & Property.



Product specification



Item Technical parameter
Pixel Pitch 2.5mm
Module Resolution 64*64 dots
Module Size 160*160mm
Pixel configuration 1R1G1B
Module Chip Kinglight/Nationstar
Driving Method 1/32Scan
Physical Density 160,000 dots/m2
LED Encapsulation SMD2121
Module Port BUH75
Module Consumption ≤16W
Brightness 1200 cd/m2
Cabinet Dimension 480*1920mm
Cabinet External Dimensions 535*1975*100mm
Cabinet Resolution 192*768 dots
Quantities of module 3*12
Cabinet Flatness Tolerance of inter pixel ≤0.3mm
Cabinet Material Aluminume,Iron
Cabinet Weight 38KG
Option Distance 2--80M
Viewing Angle Horizontal 140° Vertical 120°
Max. Power consumption 675W/sqm
Driving Device ICN2153IC
Frame Frequency 60Hz
Screen Flatness Tolerance of cabinets ≤0.6mm
Refresh Frequency 1920Hz/3840Hz
Control Mode Wifi asynchronization
Working Environment

Temperature -10℃~60℃

Humidity 10%~70%

Display Working Voltage AC110V/220V , 50Hz/60Hz
Colour temperature 8500K-11500K
Communication distance

Network cable: 100m, Multi-model: 500m,

Single-model fiber: 20km

Gray scale ≥16.7M
MTBF >10,000 hours
Support video source HDMI, CVBS, SDI , DVI etc



Slim P2.5mm 480*1920mm LED Poster Display For 4S Shop CE RoHS Certified 0Slim P2.5mm 480*1920mm LED Poster Display For 4S Shop CE RoHS Certified 1Slim P2.5mm 480*1920mm LED Poster Display For 4S Shop CE RoHS Certified 2Slim P2.5mm 480*1920mm LED Poster Display For 4S Shop CE RoHS Certified 3Slim P2.5mm 480*1920mm LED Poster Display For 4S Shop CE RoHS Certified 4
Synchronized / asynchronous system
Control Methods

Plug and play, Cross-platform operation
Real time play by connecting to network;
The screen can be controlled with fixed or portable Windows,
IOS & Android devices.
The content can be refreshed and stored in built-in media player
through WIFI or USB to achieve asynchronous play.

Slim P2.5mm 480*1920mm LED Poster Display For 4S Shop CE RoHS Certified 5

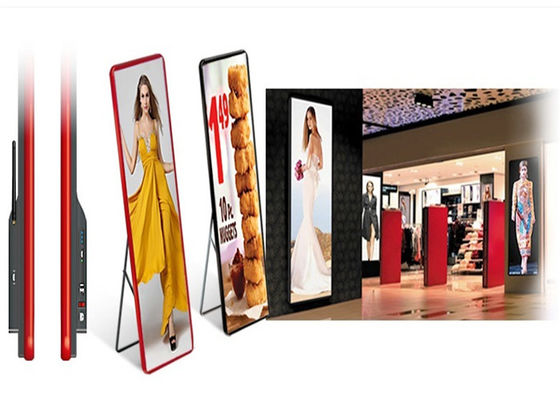

Multi-installation Method

Multi-installation Method Suitable for lifting, wall-mounted, floor-standing and creative installation like inclined strut installation

Slim P2.5mm 480*1920mm LED Poster Display For 4S Shop CE RoHS Certified 6



Our Service and Mission

Our company has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.

After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
